Improve Water Well Maintenance With Advanced Inspection Cameras

When it comes to understanding what is happening deep inside a water well, guessing is never a good option. Whether you are a well contractor, a municipal water manager, or a private homeowner with a stubborn well issue, having the right tools makes all the difference. That is exactly where ProxyViz comes into the picture. The company specializes in borehole cameras and downhole video inspection systems that are built to handle the real world demands of underground imaging and depth measurement. This article takes a closer look at what ProxyViz offers and why their equipment stands out in the field of well inspection camera​s.

What Are Borehole Cameras and Why Do They Matter

A borehole camera is essentially your eyes underground. Instead of relying on assumptions about what might be causing a drop in water pressure or a blockage somewhere in the casing, you can actually see the problem. ProxyViz designs their cameras to deliver clear, reliable imaging in demanding down-well environments. Each camera captures 1080P video along with 11.9 megapixel still images, which means you are getting both motion footage and high-resolution snapshots of everything happening below the surface.

The cameras come with autofocus and a 120 degree wide-angle lens. That combination gives users sharp and detailed viewing even in tight well and downhole inspection spaces. Advanced HDR imaging is also built in, and it is specifically tuned for low light and high contrast conditions. Dark wells with poor visibility are exactly where this technology proves its worth, helping reveal details that would otherwise stay hidden.

Built to Handle Harsh Underground Conditions

Durability matters a great deal when your equipment is going into a well. ProxyViz builds every camera from corrosion resistant stainless steel. Each unit is rated to a depth of 250 meters, which is about 820 feet, and every camera is pressure tested beyond that rating. The compact 39 millimeter diameter design makes it easy to navigate typical well casings without getting stuck or causing damage.

Media gets recorded digitally as H.264 video and JPEG stills. Beyond just images, the cameras include integrated pressure sensing and IMU data. That means you are not only seeing what is down there but also collecting useful information about depth and orientation. For anyone serious about proper well inspection cameras, this combination of visual and sensor data is a significant advantage.

Smart Control at Your Fingertips

The hand controller that comes with ProxyViz systems acts as a compact control center for well inspections. It features a 7 inch IPS daylight readable touchscreen that gives you a clear and interactive view of live footage. Under the hood, a quad core 64 bit ARM Cortex A72 processor running at 1.5 GHz keeps everything fast and responsive. Hardware accelerated HD video encoding and decoding means you are not dealing with lag or choppy playback while trying to assess a situation.

The controller runs a Linux based embedded system that has been optimized specifically for inspection work. The software is intuitive, and it supports on the fly video annotations, which is handy when you want to mark specific points of interest during a live inspection. USB and network ports are user accessible, and media saves directly to a USB drive. A high speed Ethernet link provides reliable real time communication with the camera. There is even a removable sunshield to improve visibility when you are working outdoors in bright conditions.

Portability That Makes a Difference

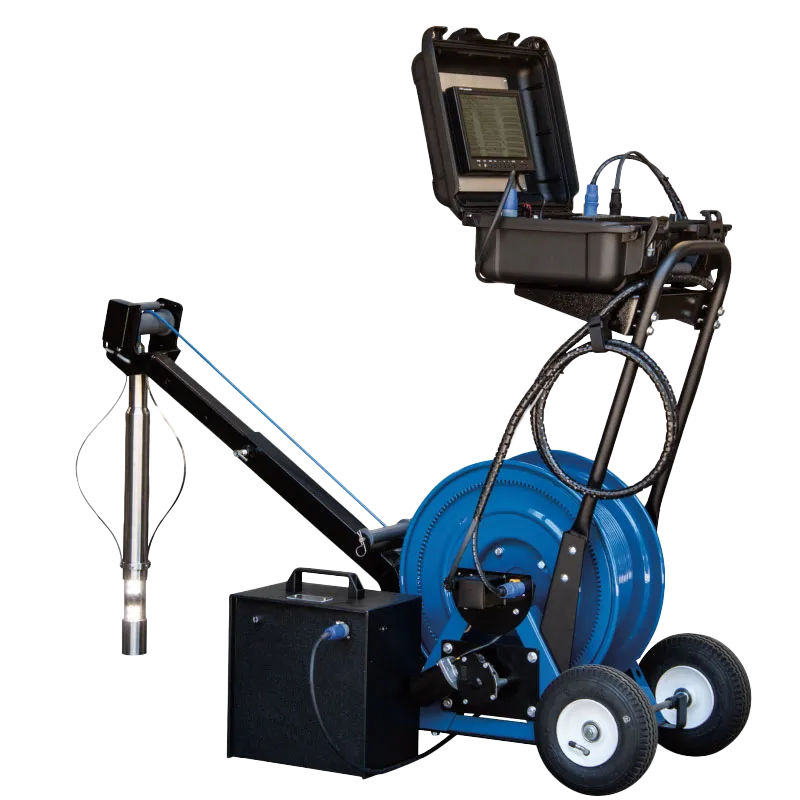

One of the standout features of ProxyViz systems is how portable they are. Each system weighs under 40 pounds, which means a single person can deploy it quickly in the field without needing a crew. The deployment system is designed for fast and simple setup, and every system comes fully equipped with essential features so you do not have to deal with complex configuration choices.

The reel can include an integrated level wind, depth encoder, pipe hanger, and adjustable brake. The tether is a 5 millimeter polyurethane jacketed cable reinforced with Kevlar, and it uses IP69 rated connectors for durability in harsh environments. Quick swappable battery packs and a fast charger keep inspections moving without long downtime. For transport and protection, the Pro and Ultra packages include a rugged hard carry case with a custom foam insert that keeps everything organized and ready to go.

Advanced Features for Detailed Analysis

ProxyViz goes beyond basic video capture with features like photogrammetry and visibility enhancement. The 1080P digital imaging and high intensity LED lighting capture sharp and evenly illuminated images throughout the well. This image quality allows users to take overlapping frames that can be processed using photogrammetry software to reconstruct the well structure. By combining hundreds of frames, the software generates accurate 3D point clouds and digital models of the well interior. These models provide a powerful way to visualize, measure, and document well conditions with far greater detail than traditional methods allow.

Visibility enhancement is another practical feature. The onboard real time processor applies advanced haze filtering during inspections. This helps reduce visual noise caused by suspended particles in the water, which improves clarity in cloudy or disturbed wells. By digitally enhancing contrast and filtering scattered light, the system reveals structural details that would otherwise be difficult to see. The result is cleaner and more usable inspection footage, even in challenging water conditions.

A Range of Options for Different Needs

ProxyViz offers multiple system configurations to match different budgets and requirements. The Lite package starts at $2,499 and includes a 50 meter tether with options to extend to 100 meters. The Pro package at $3,499 steps up to a 100 meter tether with a maximum of 150 meters, and it adds features like a detent pin and the option for a dual reel. The Ultra package at $6,999 provides a 150 meter tether with a maximum of 250 meters, a self locking winch, and the most robust feature set of the three.

All packages include the 7 inch daylight touch controller, a 64 GB USB drive for recording storage, and one USB and one Ethernet port. Battery packs are M18 Li-ion, and each system comes with a one year warranty. Optional centering skids are available for all models.

Final Thoughts

ProxyViz has clearly put thought into what well professionals actually need in the field. From the compact and durable camera design to the intuitive controller and the portability of the entire system, every detail seems aimed at making underground inspections easier and more effective. Whether you are just getting started with borehole imaging or you are looking to upgrade your existing equipment, ProxyViz offers a compelling option that balances capability with cost. For anyone in need of dependable well inspection cameras, this is a brand worth considering.
